Turn signal light/relay/diode (CRF1000) (Honda CRF1000L Africa Twin)

  • Main
  • Honda
  • Africa Twin
  • CRF 1000 L
  • Electric equipment
  • Equipment and devices
  • Turn signal light/relay/diode …
0
Contents: Bulb replacement ↓ Turn signal light…↓ Rear ↓ Turn signal light relay ↓ Inspection ↓ Turn signal light diode ↓

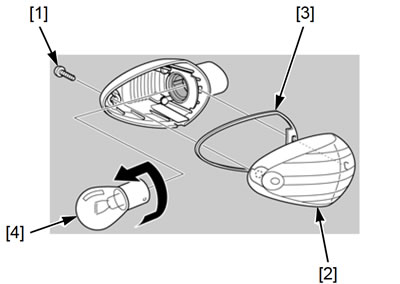

Bulb replacement



Remove the screw [1], turn signal lens [2], and seal rubber [3].

While pushing in, turn the bulb [4] counterclockwise to remove it and replace with a new one.

Install the seal rubber, lens and tighten the screw securely.

Install the seal rubber, lens and tighten the screw securely.

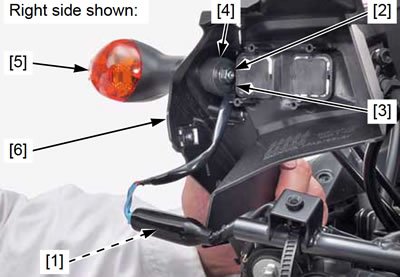

Turn signal light removal/installation front



Remove the inner panel cover (page 2-8).

Disconnect the front turn signal light 2P connector [1].
  • Right side: light blue
  • Left side: orange

Remove the following:
  • Nut [2]
  • Collar [3]
  • Grommet [4]
  • Front turn signal light [5]
  • Front turn signal light cover [6]

Installation is in the reverse order of removal.

Torque: 8.8 N·m (0.9 kgf·m, 6.5 lbf·ft)


Torque: 8.8 N·m (0.9 kgf·m, 6.5 lbf·ft)

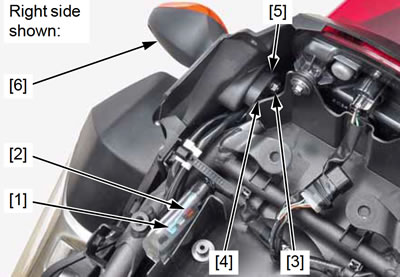

Rear



Remove the rear carrier (page 2-12).

Disconnect the rear turn signal light 2P connector.


  • Right side: light blue [1]
  • Left side: orange [2]

Remove the following:
  • Nut [3]
  • Collar [4]
  • Grommet [5]
  • Front turn signal light [6]

Installation is in the reverse order of removal.

Torque: 8.8 N·m (0.9 kgf·m, 6.5 lbf·ft)


Torque: 8.8 N·m (0.9 kgf·m, 6.5 lbf·ft)

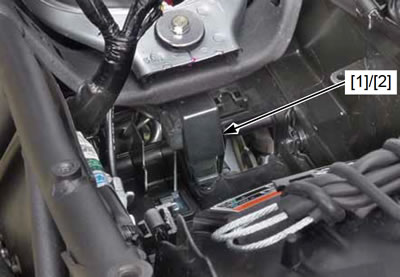

Turn signal light relay



Removal/installation



Remove the ETC tray (page 2-11).

Release the turn signal relay [1] and cover [2].

Remove the relay cover and disconnect the relay from the relay connector.

Installation is in the reverse order of removal.

Installation is in the reverse order of removal.


Inspection



Turn signal light inspection



Check the following before inspection:
  • Blown turn signal light bulb
  • Blown main fuse 30 A
  • Blown sub fuse ILLUMI STOP 7.5 A
  • Blown sub fuse CLOCK TURN 7.5 A
  • Loose or poor contact on the turn signal light relay 4P, right handlebar switch 8P (Gray), and left handlebar switch 12P (Gray) connector
  • Handlebar switch operation

Note: If the sub fuse is blown again, check for the short circuit in the related wires.



  • CRF1000 (page 24-2)

Turn the ignition switch ON and operate the turn signal light switch.

Check each turn signal light operation.

Turn signal light blinks faster than usual (One of the unit does not blink).

Note: When there is open circuit in turn signal light, other turn signal light blink faster than usual in order to notify the rider of the problem.


Check for loose or poor contact in the turn signal light 2P connector.

If the connection is OK, check the following:

Open circuit in turn signal light wire


  • Right front: Light blue wire
  • Left front: Orange wire
  • Right rear: Light blue wire
  • Left rear: Orange wire
  • Open circuit in Green wire between the turn signal light 2P connector and ground

If the wires are OK, replace the problematic turn signal light with a known good one and recheck.
  • If the known good turn signal light blinks, original unit is faulty.
  • If the known good turn signal light does not blink, replace the turn signal relay with a new one and recheck.

Turn signal light does not blinks at all with the turn signal light switch operating.
  • Open circuit in the Black/red wire between the turn signal light relay and left handlebar switch
  • Open circuit in the White/green wire between the turn signal light relay and left handlebar switch
  • Open circuit in the turn signal light relay ground line (Green wire)

If the wires are OK, replace the turn signal light with a known good one and recheck.

Turn signal relay back-up voltage line

Measure the voltage between the Red/white wire terminal (+) and ground (-).


There should be battery voltage at all times.

If there is no voltage, check for the open circuit in Red/ white wire.

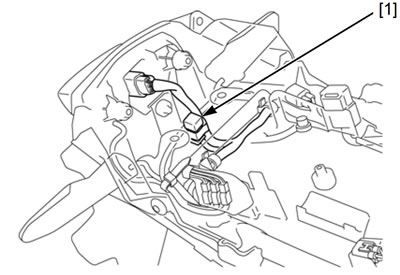

Turn signal light diode



Removal/installation



Remove the pillion seat (page 2-11).

Remove the turn signal light diode [1].

Installation is in the reverse order of removal.

Installation is in the reverse order of removal.

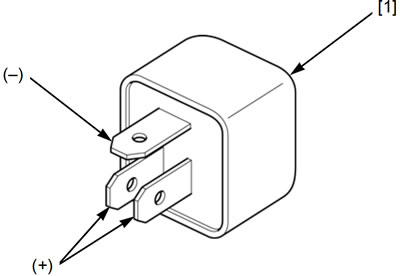

Inspection



Check for continuity between the turn signal light diode [1] terminals.

When there is continuity, a small resistance value will register.

If there is continuity in one direction, the turn signal light diode is normal.

If there is continuity in one direction, the turn signal light diode is normal.
