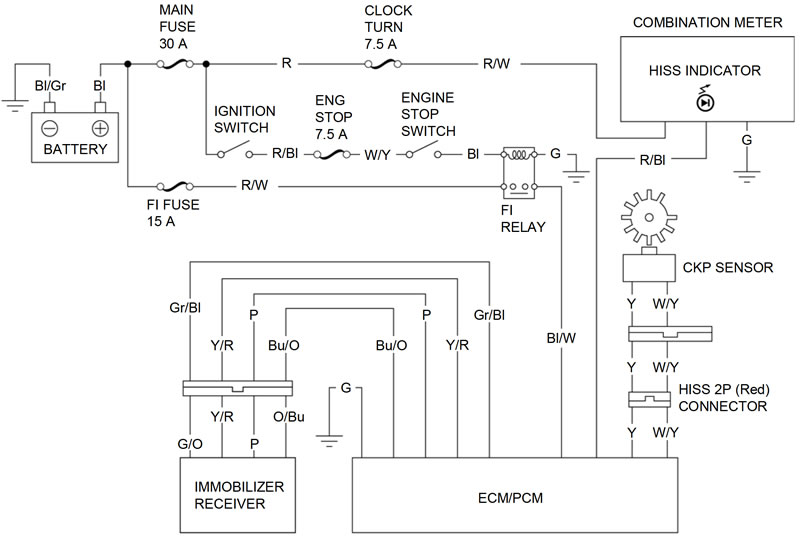

System diagram
Bl: Black; Bu: Blue; G: Green; R: Red; O: Orange; P: Pink; R: Red; W: White; Y: Yellow
See this article in russian language
This article has been reviewed: Timofey Alexandrov
